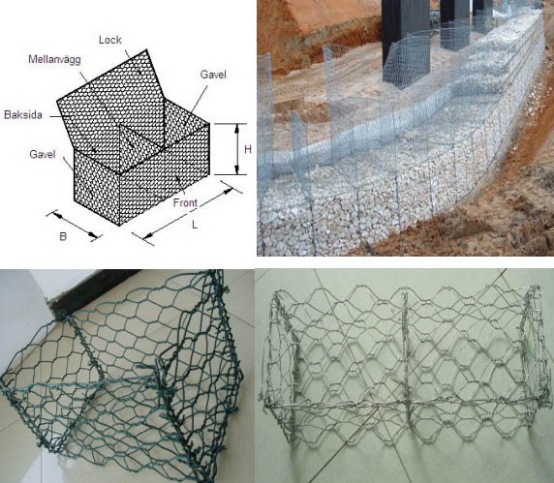

 Gabions box are wire containers made of hexagonal wire netting.
Material: Galvanized low carbon steel wire, PVC or PE coated wire
The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
Finish: Hot-dipped galvanized, galvanized aluminum alloy, PVC or PE coating, PVC or PE dipped.
Gabions is made of PVC coated wires,

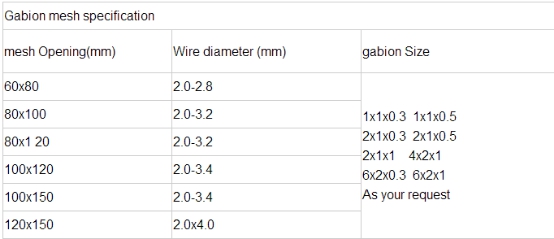

includes the following sizes: |
apetures, wire diameters
(PVC coated) inside/outside |
60*80 |
2.0mm/3.0mm-2.8mm/3.8mm |
80*100 |
2.2mm/3.2mm-3.0mm/4.0mm |
100*120 |
2.4mm/3.4mm-3.2mm/4.2mm |
120*150 |
2.7mm/3.7mm-3.5mm/4.5mm |
Length |
Width |
Height |
Diaphragm |
Volume |
Tolerance |
2.0m |
1.0m |
0.3m |
1 |
0.6m3 |
|
3.0m |
1.0m |
0.3m |
2 |
0.9m3 |
|
4.0m |
1.0m |
0.3m |
3 |
0.2m3 |
|
2.0m |
1.0m |
0.5m |
1 |
1.0m3 |
L +/- 3% |
3.0m |
1.0m |
0.5m |
2 |
1.5m3 |
W +/- 5% |
4.0m |
1.0m |
0.5m |
3 |
2.0m3 |
H +/- 5% |
1.0m |
1.0m |
0.5m |
0 |
1.0m3 |
|
1.5m |
1.0m |
1.0m |
0 |
1.5m3 |
|
2.0m |
1.0m |
1.0m |
1 |
2.0m3 |
|
3.0m |
1.0m |
1.0m |
2 |
3.0m3 |
|
4.0m |
1.0m |
1.0m |
3 |
4.0m3 |
|
|
