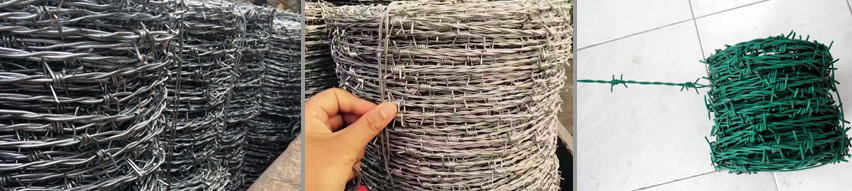

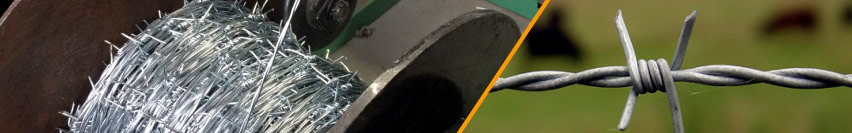

Barbed wire also known as barb wire is a type of fencing wire constructed with sharp edges or points arranged at intervals along the strand.
Used in protecting of grass boundary, railway, Highway, national defense, airport, orchard, etc.
| Barbed Wire Specification | ||||
| Type | Wire Gauge (BWG) | Barb distance (cm) | Barb length (cm) | |
| Electric Galvanized Barbed wire ; Hot-dip Galvanized Barbed Wire | 10# x12# | 7.5-15 | 1.5-3 | |
| 12# x12# | ||||
| 12# x14# | ||||
| 14# x 14# | ||||
| 14# x16# | ||||
| 16# x16# | ||||
| 16# x18# | ||||
| PVC Coated barbed wire | Before coating | after coating | ||
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC coating thickness: 0.4mm-1.0mm Different colors or length are available as customers’ request | ||||
